Concrete Pump Spare Parts for Zoomlion/Sany Machine

Basic Info.

Model NO.	CX
Type	Tremie Pipe
Handle Material	Q345b / 16mn / 35CrMo / 45cr
Diameter	219mm, 260mm, 300mm or as Required
Delivery	by Sea or Land
Color	Black, Yellow or as Required
Usage	Rotary Drilling Machine
Place of Origin	Hunan
Processing Type	Casting/Forging
Thickness	3mm or as Required
Packaging Details	1. Wrapped with Plastic Film. 2. Fixed with Iron S
Transport Package	Plastic Packing
Specification	219mm, 260mm, 300mm or as required
Trademark	ISO9001: 2000
Origin	Made in China
HS Code	8431432
Production Capacity	500PC/Month

Product Description

Related products:

Jobsite

Target Market

The markets that have already been traded are as follows:

Australia,Japan,Taiwan, Malaysia, Cambodia,Indonesia , the Philippines,Thailand, Myanmar, Bangladesh,the Middle East , Papua New Guinea ,Mexico , Turkey and etc.

During the operations they are lowered inside and through the steel cage reinforcement to protect concrete from soil contamination water filtering and to avoid any possible concrete quality corruption. Tremie pipes are made of quality drawn steel plates in order to guarantee high resistance elements.Pipes section can be connected by two kinds of coupling systems: threaded joints and wire cable joints. While threaded tremie pipes are equipped with male/female joints with tread, the wire cable systwm is designed for quick assembly/dismounting of the various pipe sections during the concreting operations. Using wire cables joints water and mud penetrations is prevented by O-ring seals applied in between male and demale joints. Diameter Range: 219mm, 260mm, 300mm or as requiredWall thickness: 3mm or as required

TREMIE PIPES WITH WIRE CABLES

Female Joint mm	Mle Joint mm	Tremie Pipe mm	Tremie Pipe Thickness mm	Weight for 1m kg
274	248	219	3	40
325	294	260	3	48
374	338	300	3	65
*Other dimensions are avaliable on request.

THREADED TREMIE PIPES

Female Joint mm	Mle Joint mm	Tremie Pipe mm	Tremie Pipe Thickness mm	Weight for 1m kg
260	240	219	3	30
306	286	260	3	32
345	322	300	3	40
*Other dimensions are avaliable on request.

Packaging and delivery

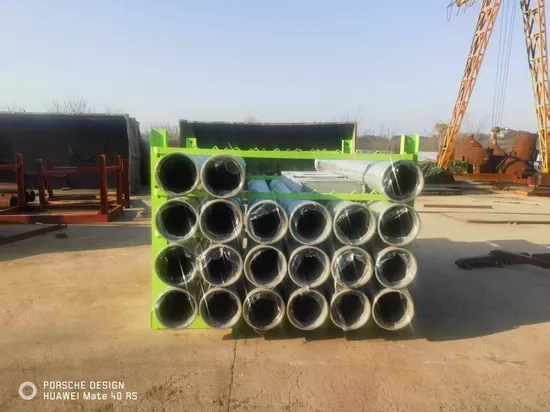

Packaging Details	1. Wrapped with plastic film. 2. Fixed with iron support, wheel or pallet when necessary. (3. Packed with wooden cases for small things.)
Port	Shanghai Port or others
Single package size:	100X70X30 cm

Application: Factory Product Pictures
Packing & Delivery

FAQ

Q1. How long have you been in this business?

Over 10 years experience.

Q2. Do you accept sample order? Yes sure, please contact us for details.

Q3. How about your after-sales service?
We offer promote technology support for all problems and questions.

Besides, we accept goods return or replace for quality problem.

Q4. How does your company control the quality?

Quality first. In order to guarantee high quality for our products.

We makes a serious inspection for all products and raw materials in strict procedure.

Our service

1. Prompt delivery 2. Best after-sale service 3. The products could be produce according to customer's requirements 4. Inquiries are typically replyed within 24 hours
